EP2C35F484I8 Intel / Altera

Product Categories

ZhongHao Industry Limited

Contact Now

Description : EP2C35F484I8 Intel / Altera FBGA-484

Contact Now

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Intel
Product Category:	FPGA - Field Programmable Gate Array
RoHS:	N
Series:	Cyclone II EP2C35
Number of Logic Elements:	33216 LE
Adaptive Logic Modules - ALMs:	2076 ALM
Embedded Memory:	472.5 kbit
Number of I/Os:	322 I/O
Supply Voltage - Min:	1.15 V
Supply Voltage - Max:	1.25 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Data Rate:	-
Number of Transceivers:	-
Mounting Style:	SMD/SMT
Package / Case:	FBGA-484
Packaging:	Tray
Brand:	Intel / Altera
Maximum Operating Frequency:	260 MHz
Moisture Sensitive:	Yes
Number of Logic Array Blocks - LABs:	2076 LAB
Operating Supply Voltage:	1.15 V to 1.25 V
Product Type:	FPGA - Field Programmable Gate Array
	60
Subcategory:	Programmable Logic ICs
Total Memory:	483840 bit
Tradename:	Cyclone II
Part # Aliases:	971041
Unit Weight:	0.480852 oz


*From:	Your email address is incorrect!
*To:	ZhongHao Industry Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

*From:

*To:

ZhongHao Industry Limited

*Subject:

*Message:

Characters Remaining: (0/3000)

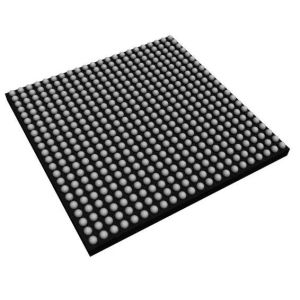

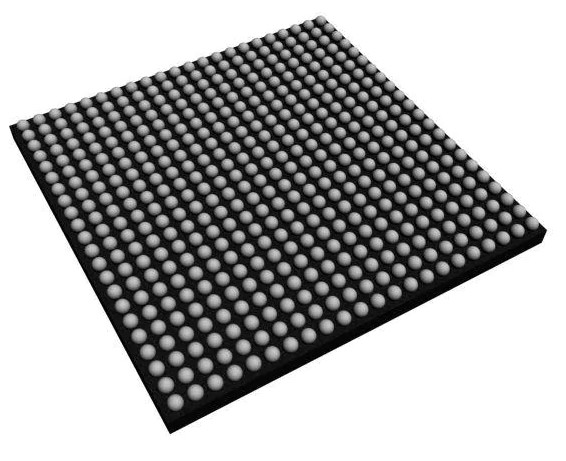

EP2C35F484I8 Intel / Altera Images
